Raspberry Pi: Install USB Wifi Realtek 0bda:f179 using rtl8188fu module

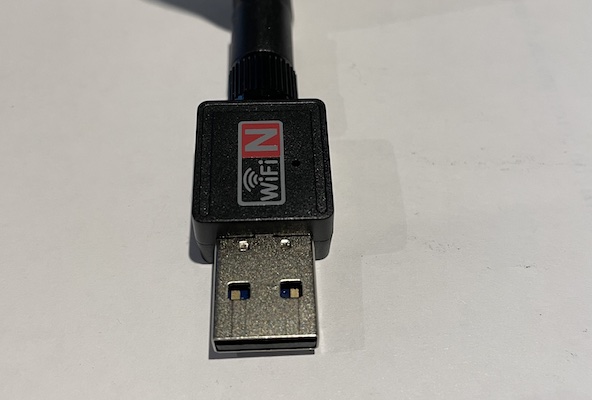

I bouthg a US$5.00 wifi usb dongle for a Raspberry Pi 4 Model B, but when I plugged it, it did not work (below the output of dmesg
after plugging in the device).
[ 294.567130] usb 1-1.2: new full-speed USB device number 4 using xhci_hcd
[ 295.479375] usb 1-1.2: device descriptor read/64, error -32
[ 295.667394] usb 1-1.2: device descriptor read/64, error -32
[ 296.627688] usb 1-1-port2: Cannot enable. Maybe the USB cable is bad?
[ 296.628403] usb 1-1-port2: attempt power cycle
[ 297.231167] usb 1-1.2: new full-speed USB device number 6 using xhci_hcd
[ 297.231404] usb 1-1.2: Device not responding to setup address.
[ 297.439403] usb 1-1.2: Device not responding to setup address.
[ 297.647217] usb 1-1.2: device not accepting address 6, error -71
[ 298.499779] usb 1-1-port2: Cannot enable. Maybe the USB cable is bad?
[ 298.500481] usb 1-1-port2: unable to enumerate USB device
I did not get much info from thos messages, so I plugged it in a Mac (Apple icon / About this mac / System Report / USB)
Product information
802.11n:
Product ID: 0xf179
Vendor ID: 0x0bda (Realtek Semiconductor Corp.)
Manufacturer: Realtek
With that information I found that the RTL8188 was the module I needed and the steps to install it, though they were not directly working on a Raspberry Pi. I needed to solve a couple of issues. Below the steps.
Prepare the system
In my case, first, I updated the Raspberry Pi :
# all the steps are done as root
sudo su
cd
apt update
apt full-upgrade
The Linux kernel I was using:
uname -a
Linux pi 5.15.32-v8+ #1538 SMP PREEMPT Thu Mar 31 19:40:39 BST 2022 aarch64 GNU/Linux
Then, make sure you have the tools to download and build the module.
apt install build-essential git dkms
It is also necessary to install the kernel headers:
apt install raspberrypi-kernel-headers
Build the RTL8188FU module
The device 0bda:f179 uses the RTL8188FU module. The version that I used is the one in the ARM branch of kelebek333/rtl8188fu github repository.
So first, we download the module source code:
cd /tmp/
git clone -b arm https://github.com/kelebek333/rtl8188fu rtl8188fu-arm
Then, edit ./rtl8188fu-arm/Makefile
and modify the lines:
CONFIG_POWER_SAVING = n # Remove power saving
CONFIG_WIFI_MONITOR = y # Enable device to use monitor mode
Now we create a symbolic link
ln -s /lib/modules/$(uname -r)/build/arch/arm /lib/modules/$(uname -r)/build/arch/armv7l
By default the driver comes with all debug messages activated. It is pretty annoying but useful if something goes wrong. To disable them edit rtl8188fu-arm/include/autoconf.h
by commenting (prepending //
) the three lines as below
//#define CONFIG_DEBUG /* DBG_871X, etc... */
//#define CONFIG_DEBUG_RTL871X /* RT_TRACE,
//#define CONFIG_PROC_DEBUG
The output should be something like:
/*
* Debug Related Configure
*/
//#define CONFIG_DEBUG /* DBG_871X, etc... */
#ifdef CONFIG_DEBUG
#define DBG 1 /* for ODM & BTCOEX debug */
#define DBG_PHYDM_MORE 0
#else /* !CONFIG_DEBUG */
#define DBG 0 /* for ODM & BTCOEX debug */
#define DBG_PHYDM_MORE 0
#endif /* CONFIG_DEBUG */
#if DBG_PHYDM_MORE
//#define CONFIG_DEBUG_RTL871X /* RT_TRACE, RT_PRINT_DATA, _func_enter_, _func_exit_ */
#endif /* DBG_MORE */
//#define CONFIG_PROC_DEBUG
Add the module to the tree for build
dkms add ./rtl8188fu-arm
Change default architecture to ARM64
export ARCH=arm64 # by default it takes aarch64
Build the module
dkms build rtl8188fu/1.0
Expected output something similar to:
Kernel preparation unnecessary for this kernel. Skipping...
Building module:
cleaning build area...
'make' all KVER=5.15.32-v8+...........................................................
cleaning build area...
DKMS: build completed.
Install the module
dkms install rtl8188fu/1.0
Expected output, something similar to:
rtl8188fu.ko:
Running module version sanity check.
- Original module
- No original module exists within this kernel
- Installation
- Installing to /lib/modules/5.15.32-v8+/updates/dkms/
depmod....
As you can see, the module was copied/installed in /lib/modules/${name -r}/updates/dkms/
Copy the firmware
cp ./rtl8188fu-arm/firmware/rtl8188fufw.bin /lib/firmware/rtlwifi/
Launch the modules
modprobe cfg80211
modprobe rtl8188fu
Check the output of dmesg
[ 973.585841] =======================================================
[ 973.585848] ==== Launching Wi-Fi driver! (Powered by Rockchip) ====
[ 973.585855] =======================================================
[ 973.585862] Realtek 8188FU USB WiFi driver (Powered by Rockchip) init.
[ 973.585869] RTL871X: module init start
[ 973.585876] RTL871X: rtl8188fu v4.3.23.6_20964.20170110
[ 973.586076] usbcore: registered new interface driver rtl8188fu
[ 973.586088] RTL871X: module init ret=0
Now you can plug the USB WIFI device in a blue USB 3.0 socket (it did not work for me in a USB 2.0). If the module has been properly loaded:
lsusb
You can expect to see a like similar to:
Bus 001 Device 008: ID 0bda:f179 Realtek Semiconductor Corp. RTL8188FTV 802.11b/g/n 1T1R 2.4G WLAN Adapter
Load module on boot
Lastly, to load the module on boot edit /etc/modules
and add the lines at the bottom
cfg80211
rtl8188fu
And reboot to check
reboot
Troubleshooting
As I needed to build the module several times to make it work these are some commands / tips that may be useful:
dmesg
Filter the messages for USB stuff.
dmesg | grep -i USB
[ 638.530452] usb 1-1.3: new high-speed USB device number 17 using xhci_hcd
[ 638.614839] usb 1-1.3: Device not responding to setup address.
[ 638.822668] usb 1-1.3: Device not responding to setup address.
[ 639.030376] usb 1-1.3: device not accepting address 17, error -71
[ 642.874262] usb 1-1.3: new full-speed USB device number 19 using xhci_hcd
[ 643.162469] usb 1-1.3: device descriptor read/64, error -32
Uninstall the module
If you need to rebuild and install the module again
sudo dkms remove rtl8188fu/1.0 --all
sudo rm -f /lib/firmware/rtlwifi/rtl8188fufw.bin
sudo rm -f /etc/modprobe.d/rtl8188fu.conf
List the modules that are in your kernel
You can list all loadable modules and check if the module is there.
find /lib/modules/$(uname -r) -type f -name '*.ko'
